Hard drive

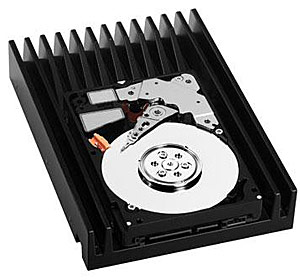

Western Digital VelociRaptor WD3000GLFS

• 300GB
• 10000 RPM
• 16MB Cache
• SATA 3.0Gb/s

Engineered for maximum speed! WD VelociRaptor, the newest member of our unique class of 10,000 RPM SATA hard drives, combines a SATA 3 Gb/s interface and 16 MB cache, to deliver performance that's up to 35% faster than its speedy older brother.

Killer speed - Built on the performance bloodlines of WD Raptor, these 10,000 RPM drives, with SATA 3 Gb/s interface, and 16 MB cache deliver mind-bending performance. Not only are they 35 percent faster than the previous generation WD Raptor drives, but they also beat out all other competitors in the field.

Rock-solid reliability - Designed and manufactured to mission-critical enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive.

Double the capacity - State-of-the-art technology packs twice the capacity per disk compared to its older brother WD Raptor resulting in 300 GB of high-performance storage space in this enterprise-class 2.5-inch drive. (Not compatible with notebook computers)

IcePackâ„¢ mounting frame - The 2.5-inch WD VelociRaptor is enclosed in a 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis. (This drive is not backplane compatible.)

Rotary Acceleration Feed Forward (RAFFâ„¢) - Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.

NoTouchâ„¢ ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

5-year limited warranty

Performance Specifications
	Rotational Speed	10,000 RPM (nominal)
	Buffer Size	16 MB
	Average Latency	5.50 ms (nominal)
	Load/unload Cycles	50,000 minimum

Seek Times
	Read Seek Time	4.2 ms
	Write Seek Time	4.7 ms (average)
	Track-To-Track Seek Time	0.7 ms (average)

Transfer Rates
	Buffer To Host (Serial ATA)	3 Gb/s (Max)

Physical Specifications
	Formatted Capacity	300,069 MB
	Capacity	300 GB
	Interface	SATA 3 Gb/s
	User Sectors Per Drive	586,072,368

Physical Dimensions
English
	Height	1.028 Inches (Max)
	Length	5.787 Inches (Max)
	Width	4.00 Inches (+/- 0.010 inch)
	Weight	1.08 Pounds

Metric
	Height	26.1 mm (Max)
	Length	147 mm (Max)
	Width	101.6 mm
	Weight	0.489 kg

Environmental Specifications
Shock
	Operating Shock (Read)	65G, 2 ms
	Non-operating Shock	300G, 2 ms

Acoustics
	Idle Mode	29 dBA (average)
	Seek Mode 0	36 dBA (average)

Temperature (English)
	Operating	32° F to 140° F
	Non-operating	-40° F to 158° F

Temperature (Metric)
	Operating	-0° C to 60° C
	Non-operating	-40° C to 70° C

Humidity
	Operating	5-95% RH non-condensing
	Non-operating	5-95% RH non-condensing

Altitude (English)
	Operating	-1,000 feet to 10,000 feet
	Non-operating	-1,000 feet to 40,000 feet

Altitude (Metric)
	Operating	-305M to 3,050M
	Non-operating	-305M to 12,200M

Vibration
	Operating
	Linear	20-300 Hz, 0.75G (0 to peak)
	Random	10-300 Hz, 0.008 g² / Hz

	Non-operating
	Low Frequency	0.05 g²/Hz (10 to 300 Hz)
	High Frequency	20-500 Hz, 4.0G (0 to peak)

Electrical Specifications
Current Requirements
	12 VDC
	Read/Write	225 mA
	Idle	200 mA
	Standby	6 mA
	Sleep	6 mA

	5 VDC
	Read/Write	675 mA
	Idle	425 mA
	Standby	70 mA
	Sleep	70 mA

	Power Dissipation
	Read/Write	6.08 Watts
	Idle	4.53 Watts
	Standby	0.42 Watts
	Sleep	0.42 Watts
