Loves - Computers, Setup of May 2010

SSD Drive

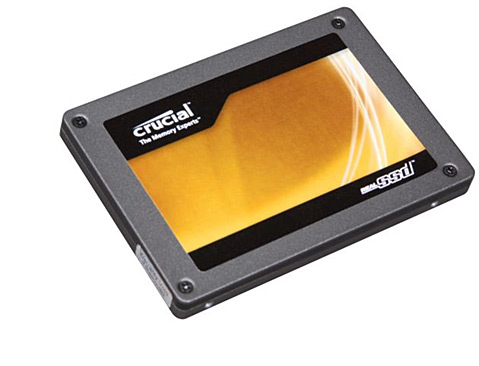

Crucial RealSSD C300

If you're looking for unhindered speed, Crucial's RealSSD™ C300 is here! The new 2.5-inch Crucial RealSSD C300 drive offers mobile and desktop users scorching-fast read speeds of up to 355MB/s. And because it has no moving parts, you will also enjoy a quieter, cooler, and more durable storage solution — and a better alternative to a traditional notebook hard drive.

Designed with high-speed synchronous MLC NAND, advanced controller technology, optimized NAND management, and the new SATA 6Gb/s interface, these drives dramatically improve data transfers for bandwidth-demanding applications like audio and video.

  • Size = 128GB
  • Sequential Read = 355MB/sec (SATA 6Gb/s)
  • Sequential Write = 140MB/sec (SATA 6Gb/s)
  • Power Consumption = 1.7W READ, 3.1W WRITE
  • Interface = SATA 6.0Gb/s
  • Architecture = MLC

View Datasheet | View brochure

General
Brand Crucial
Series RealSSD C300
Model CTFDDAC128MAG-1G1
Device Type Internal Solid State Drive (SSD)
Architecture MLC
Expansion / Connectivity
Form Factor 2.5"
Capacity 128GB
Interface Type SATA III
Features Micron MLC NAND Flash
Marvell Controller
SATA 6 Gb/s interface
RAID Support
ATA-8 w/ TRIM
Self-monitoring, analysis, and reporting technology (SMART) command set
Random 4k READ: 50,000 IOPS
Random 4k WRITE: 30,000 IOPS
Built-in EDC/ECC
Performance
Max Shock Resistance 1500G / 1.0ms
Max Vibration Resistance 2-500Hz at 3.1G
Power Consumption (Active) 1.7W READ, 3.1W WRITE
Power Consumption (Idle) 0.092W
Sequential Access - Read 355MB/sec (SATA 6Gb/s)
265MB/sec (SATA 3Gb/s)
Sequential Access - Write 140MB/sec (SATA 6Gb/s)
140MB/sec (SATA 3Gb/s)
MTBF 1,200,000 hours
Manufacturer Warranty
Parts 3 years limited
Labor 3 years limited
