Motherboard

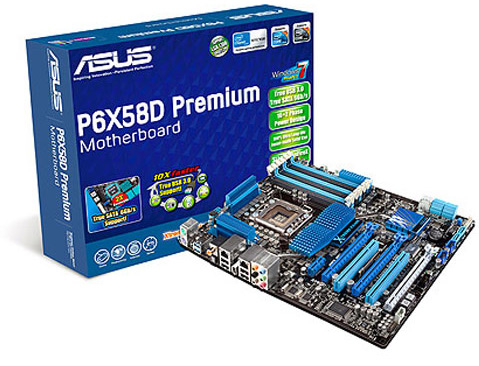

Asus P6X58D Premium

The P6X58D motherboard provides you a host of new features and the latest technologies. It supports Core i7 (LGA1366) and delivers better overclocking capabilities with less power consumption. It features Triple channel DDR3 2000(O.C.)/1333/1066 memory support and breaks the boundaries to bring you the multi-GPU choice of either SLI or CrossFireX. In addition, TurboV helps you to overclock easily without the need of experience!

LGA1366 Intel® Bloomfield Processor Ready:
This motherboard supports the latest Intel® Core™ i7 processors in LGA1366 package with integrated memory controller to support 3-channel (6 DIMMs) DDR3 memory. Supports Intel® QuickPath Interconnect (QPI) with a system bus of up to 6.4 GT/s and a max bandwidth of up to 25.6 GB/s. Intel® Core™ i7 processor is one of the most powerful and energy efficient CPUs in the world.

Intel X58: The Intel® X58 Express Chipset is one of the most powerful chipset designed to support the Intel® Core™ i7 Processors with LGA1366 package and Intel® next generation system interconnect interface, Intel® QuickPath Interconnect (QPI), providing improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It also supports up to 36 PCI Express 2.0 lanes providing better graphics performance.

True SATA 6Gb/s Support: Experience the Future of Storage! Supporting next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.

True USB 3.0 Support: 10X Faster Date Rates! Experience ultra-fast data transfers at 4.8Gbps with USB 3.0—the latest connectivity standard. Built to connect easily with next generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.

Model
Brand ASUS
Model P6X58D Premium
Supported CPU
CPU Socket Type LGA 1366
CPU Type Core i7 (LGA1366)
FSB QPI 6.4GT/S
Specifications
CPU Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Turbo Boost Technology
Chipset Intel® X58 / ICH10R
System Bus Up to 6400 MT/s
Memory 6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1600/1333/1066 Non-ECC,Un-buffered Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
*Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).
Expansion Slots 3 x PCIe 2.0 x16 (at x16/x8/x8 or x16/x16/x1 mode)
1 x PCIe x1
2 x PCI
Multi-GPU Support Supports NVIDIA® 3-Way SLI™ Technology*
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage Intel ICH10R controller
6 xSATA 3.0 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
Marvell® PCIe SATA 6Gb/s controller
- 2 x SATA 6.0 Gb/s ports
LAN Dual Gigabit LAN controllers 2*Marvell 88E8056® PCIe Gigabit LAN controller featuring AI NET2
Audio Realtek® ALC889 8-Channel High Definition Audio CODEC
- DTS Surround Sensation UltraPC
- BD audio layer Content Protection
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O
IEEE 1394 VIA® VT6308P controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)
USB NEC® USB 3.0 controller
- 2 x USB 3.0/2.0 ports (at back panel)
Intel® ICH10R Southbridge
- 8 x USB 2.0/1.1 ports (4 ports at midboard; 4 ports at back panel)
ASUS Unique Features True USB 3.0 Support
True SATA 6Gb/s Support
ASUS Xtreme Design
ASUS Xtreme Phase
- ASUS 16+2 Phase Power Design
ASUS Exclusive Overclocking Features
- ASUS TurboV
ASUS Exclusive Features
- MemOK!
- ASUS EPU
- Express Gate SSD
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fanless Design: Stack Cool 3+
- ASUS Fan Xpert
ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Design: Q-Slot
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
Overclocking Features Intelligent overclocking tools
- ASUS TurboV
Precision Tweaker 2
- vCore: Adjustable CPU voltage at 0.00625V increment
- vChipset 31-step chipset voltage control
- vCPU PLL: 36-step reference voltage control
- vDRAM Bus: 49-step DRAM voltage control
- vNB-PCIe: 65-step chipset-PCIe voltage control
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports 1 x IEEE 1394a
2 x LAN(RJ45) port
8 -Channel Audio I/O
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1 x Clear CMOS button
1 x Coaxial S/PDIF Output
1 x Optical S/PDIF Output
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
Internal I/O Connectors 2 x USB connectors support additional 4 USB 2.0/1.1 ports
1 x IEEE 1394a connector
1 x CPU Fan connector
1 x Power Fan connector
System Panel (Q-Connector)
2 x SATA 6.0 Gb/s connectors (gray)
6 x SATA 3.0 Gb/s connectors (blue)
3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
Front panel audio connector
1 x S/PDIF Out Header
CD audio in
24-pin ATX Power connector
8-pin ATX 12V Power connector
1 x MemOK! Button
1 x Power on switch
1 x Reset switch
BIOS 16 Mb Flash ROM , AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories User's manual
4 x Serial ATA 3.0Gb/s cables
2 x Serial ATA 6.0Gb/s cables
ASUS Q-Shield
2 in 1 Q-connector
1 x Optional Fan for water-cooling or passive-cooling only
1 x ASUS 3-Way SLI bridge connector
1 x ASUS SLI bridge connector
1 x 2-port USB 2.0/ eSATA module
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
